A Tutorial Guide for Debezium Data Synchronization

· 3 min read
Barry Logen

Debezium is an open-source CDC (Change Data Capture) tool that streams database changes in real-time to Kafka, where data can be further processed or synchronized with various databases like MySQL, Oracle, PostgreSQL, StarRocks, and more through Sink Connectors.

Using a MySQL -> Kafka -> StarRocks pipeline as an example, this guide demonstrates how Debezium enables efficient and stable data synchronization across systems.

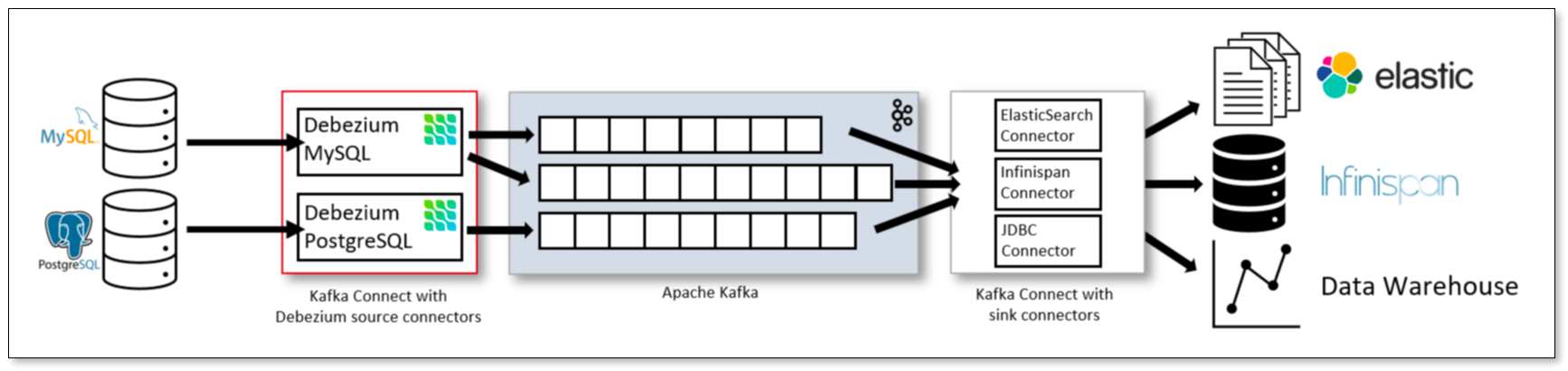

debezium_01

Debezium Environment Setup​

  • One-click deployment of related resources (Docker) debezium-test.tar.gz
    • Kafka Cluster + Kafka UI (Middleware)
    • Debezium (Synchronization Tool)
    • MySQL (Source)
    • StarRocks (Target)
    tar -xzvf debezium-test.tar.gz
    sh install.sh

Create MySQL Source Connector​

  • The source is MySQL, created using the table below.

    CREATE DATABASE `inventory`;

    CREATE TABLE `inventory`.`customer` (
      `c_int` int NOT NULL,
      `c_bigint` bigint NOT NULL,
      `c_decimal` decimal(10,3) NOT NULL,
      `c_date` date NOT NULL,
      `c_datetime` datetime NOT NULL,
      `c_timestamp` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP,
      `c_year` int NOT NULL,
      `c_varchar` varchar(10) NOT NULL,
      `c_text` text NOT NULL,
      PRIMARY KEY (`c_int`)
    );

  • Create a Connector to subscribe to MySQL change events via Debezium’s API.

    curl -i -X POST http://127.0.0.1:7750/connectors \
      -H 'Content-Type: application/json' \
      -d '{
        "name": "connector-test-mx",
        "config": {
          "connector.class": "io.debezium.connector.mysql.MySqlConnector",
          "database.hostname": "112.124.38.87",
          "database.port": "25000",
          "database.user": "root",
          "database.password": "123456",
          "database.server.id": "1",
          "database.server.name": "mx",
          "database.include.list": "inventory",
          "decimal.handling.mode": "string",
          "binary.handling.mode": "hex",
          "topic.prefix": "mx",
          "table.include.list": "inventory.customer",
          "snapshot.mode": "never",
          "database.history.kafka.bootstrap.servers": "112.124.38.87:19092,112.124.38.87:29092,112.124.38.87:39092",
          "schema.history.internal.kafka.bootstrap.servers": "112.124.38.87:19092,112.124.38.87:29092,112.124.38.87:39092",
          "schema.history.internal.kafka.topic": "mx.schemahistory.customer",
          "database.history.kafka.topic": "mx.mx_history_schema",
          "include.schema.changes": "false",
          "converters": "mysqltime",
          "mysqltime.type": "io.debezium.converter.MySQLTimeConverter",
          "mysqltime.format.date": "yyyy-MM-dd",
          "mysqltime.format.time": "HH:mm:ss",
          "mysqltime.format.datetime": "yyyy-MM-dd HH:mm:ss",
          "mysqltime.format.timestamp": "yyyy-MM-dd HH:mm:ss",
          "mysqltime.format.timestamp.zone": "UTC+8"
        }
      }'

  • After creation, check the status of the Connector.

    curl -s http://127.0.0.1:7750/connectors/connector-test-mx/status

Create Sink Connector for StarRocks​

  • The target is StarRocks, created using the table below.

    CREATE DATABASE `inventory`;

    CREATE TABLE `inventory`.`customer` (
      `c_int` int NOT NULL,
      `c_bigint` bigint NOT NULL,
      `c_decimal` decimal(10,3) NOT NULL,
      `c_date` date NOT NULL,
      `c_datetime` datetime NOT NULL,
      `c_timestamp` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP,
      `c_year` int NOT NULL,
      `c_varchar` varchar(10) NOT NULL,
      `c_text` text NOT NULL
    ) ENGINE=OLAP
    PRIMARY KEY(`c_int`)
    DISTRIBUTED BY HASH(`c_int`) BUCKETS 4
    PROPERTIES (
      "replication_num" = "1",
      "in_memory" = "false",
      "storage_format" = "DEFAULT",
      "enable_persistent_index" = "false",
      "replicated_storage" = "true",
      "compression" = "LZ4"
    );

  • Create a Sink Connector via Debezium’s API to write Kafka change data into StarRocks.

    curl -i -X POST http://127.0.0.1:7750/connectors \
      -H 'Content-Type: application/json' \
      -d '{
        "name":"jdbc-sink-starrocks",
        "config":{
          "connector.class":"io.debezium.connector.jdbc.JdbcSinkConnector",
          "connection.url":"jdbc:mysql://112.124.38.87:19030/inventory",
          "connection.username": "root",
          "connection.password": "123456",
          "topics":"mx.inventory.customer",
          "auto.create":"false",
          "insert.mode": "insert",
          "delete.enabled": "true",
          "primary.key.mode":"record_key",
          "primary.key.fields":"c_int",
          "table.name.format": "inventory.customer"
        }
      }'

Data Synchronization Test​

  • Perform random CRUD operations on MySQL. Debezium will capture MySQL’s CDC change data and write it to Kafka; the Sink Connector will write Kafka data into StarRocks.
  • Conduct a data comparison test to verify data consistency on both sides.
  • Pause Debezium’s Sink task.
    curl -i -X PUT  http://127.0.0.1:7750/connectors/jdbc-sink-starrocks/pause

Conclusion​

Using Debezium for overall data synchronization has been relatively smooth, with a rich ecosystem supported by various plugins.

I personally feel it’s more suitable for development and can be integrated into internal business systems based
